Quick Answer: IP Ratings Explained

• IP20 → dry indoor use
• IP44 → splash-resistant indoor
• IP65 → waterproof (jets)
• IP66 → heavy-duty outdoor protection

Conclusion:

• IP20 = cost-efficient indoor
• IP44 = balanced solution
• IP65 = standard for wet areas
• IP66 = high-risk outdoor environments

IP Rating Quick Comparison

What Is an IP Rating?

IP rating (IEC 60529) defines protection against:

• solids (dust)
• liquids (water)

Learn more about international lighting compliance
→ Learn more about international lighting safety standards (CE vs CB certification)
→ e-vs-cb-certification-led-bulbs

IP20: Indoor Standard

Best for:

• offices
• retail stores
• meeting rooms

Limitation:

No water protection

Failure Mechanism

Moisture causes:

→ Electrochemical Migration (ECM)

Result:

• PCB micro short circuits
• driver instability
• long-term failure

IP44: The Cost-Effective Middle Option

Where IP44 Fits:

• bathroom zone 2
• corridors
• semi-humid indoor areas

Why choose IP44:

• lower cost than IP65
• sufficient splash protection
• better thermal performance

Best choice when IP20 is risky, but IP65 is overkill

IP65: Commercial Standard for Wet Areas

Best for:

• bathrooms
• outdoor areas
• cleaning-exposed environments

Key advantage:

• dust-tight
• water jet resistant

Learn how beam angle affects outdoor lighting
→ how-to-choose-beam-angle-led-spotlights

IP66: High-Risk Outdoor Solution

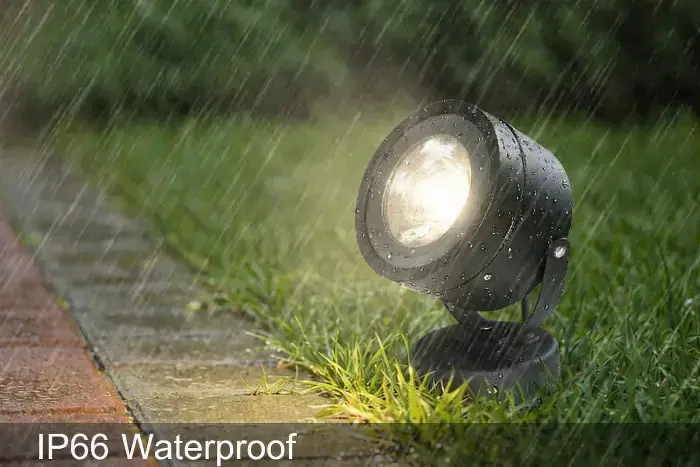

Robust outdoor spotlight illuminating a wet garden lawn and brick path during heavy rainfall, showcasing reliable waterproof performance in harsh weather conditions.

When IP65 is not enough:

• coastal areas
• heavy rain exposure
• pressure cleaning environments

Engineering Insight

IP66 provides:

• stronger sealing
• higher resistance to water pressure
• long-term outdoor reliability

Product Application

For high-end outdoor lighting:

IP66 AR111 spotlight offers:

• high-intensity beam control
• superior waterproof design
• suitable for facade & landscape lighting* suitable for facade & landscape lighting

Ideal for:

• hotels
• commercial buildings
• outdoor retail

How IP Ratings Are Tested (IEC 60529)

IP ratings are verified according to the IEC 60529 standard using controlled laboratory testing methods.

Dust Protection Test (IP6X)

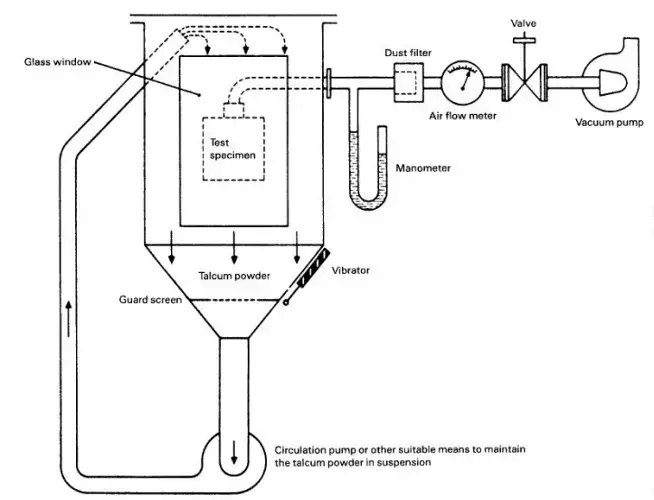

Schematic illustrating a talc powder suspension system, including components such as a guard screen, flow meter, manometer, valve, and equipment for maintaining controlled dust circulation during testing.

• The fixture is placed inside a sealed dust chamber
• Fine particles (typically talcum powder) are circulated continuously for 8 hours
• Requirement: no dust ingress is allowed inside the fixture

Purpose:

• Prevent dust accumulation on internal components
• Maintain heat dissipation performance
• Protect LED driver from contamination

Water Protection Test (IPX5 / IPX6)

High-pressure water jet test conducted in a controlled laboratory environment, demonstrating equipment used for durability and ingress protection testing.

• Water is sprayed using a calibrated nozzle
• Flow rate: approximately 12.5 L/min
• Distance: around 3 meters
• Spray direction: multiple angles
• Test duration: several minutes

Protection levels:

• IPX5 → resistant to low-pressure water jets
• IPX6 → resistant to high-pressure water jets

Purpose:

• Simulate rain exposure
• Simulate cleaning processes
• Ensure outdoor reliability

Engineering Insight

In real-world applications:

• IP65 is suitable for rain and routine cleaning
• IP66 is required for heavy rain and high-pressure washing

This is why IP66 fixtures are recommended for:

• building facades
• coastal environments
• exposed outdoor installations

Factory Validation

In production, each batch undergoes:

• random sampling IP testing
• sealing integrity inspection
• humidity and temperature cycling tests

to ensure consistent waterproof performance in large-scale commercial projects.

How to Choose the Right IP Rating

Decision Logic

Indoor?
 ├── Yes → Dry? → Yes → IP20
 │             └ No → IP44
 └── No → Cleaning / rain?
               ├ Yes → IP65
               └ Heavy exposure → IP66

Cost vs Risk

Key insight:

Choosing the wrong IP rating costs more than choosing a higher one.

Real Project Case

The Economic Reality: Retail Case

• 22% failure rate (IP20 in humid zones)
• replacement cost = 3.5× product cost

After switching to IP65:

• failure <1%
• maintenance reduced by 90%

Engineering Verdict:

Most failures happen in “in-between environments”

Procurement Strategy

Recommended stock mix:

• 50–60% IP20
• 20–30% IP44
• 15–25% IP65
• 5–10% IP66

Common Mistakes

• ignoring transition zones
• overusing IP65 indoors
• underestimating humidity

PREGUNTAS FRECUENTES

Is IP44 enough for bathrooms?

Yes (zone 2), but IP65 is safer.

Is IP65 waterproof?

Water-resistant, not submersible.

When do I need IP66?

Heavy rain or high-pressure environments.
