Como a Iluminação Dim-to-Warm GU10 Cria Melhor Atmosfera em Hotéis e Casas

Lighting has a direct impact on how people feel in a space. In modern architectural and interior design, illumination is no longer only about visibility—it is a controllable medium for atmosphere, emotion, and spatial identity.

Among the most important innovations in ambient lighting is dim-to-warm LED technology, which enables the light source to shift to a warmer color temperature as it is dimmed, creating a natural transition from functional lighting to relaxed, atmospheric lighting.

Unlike fixed-CCT LEDs, dim-to-warm is not defined by a single color temperature range. Instead, it is defined by a behavioral principle: correlated color temperature (CCT) dynamically decreases as brightness decreases.

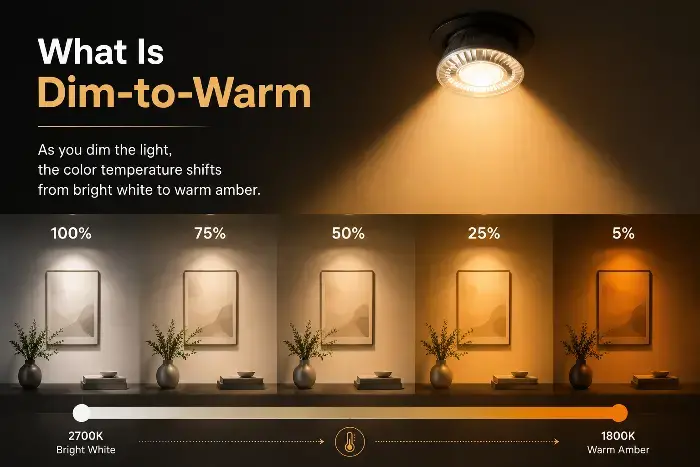

What Is Dim-to-Warm Lighting Technology?

Dim-to-warm lighting is an LED control method where the emitted light becomes progressively warmer when dimmed.

This behavior mimics traditional incandescent or halogen lamps, where lower power output naturally results in a warmer spectral appearance.

Instead of maintaining a fixed CCT (such as 2700K or 3000K), dim-to-warm systems create a continuous CCT transition curve during dimming.

Key concept:

Dim-to-warm = brightness change + correlated color temperature shift

How Dim-to-Warm Technology Works in LED Systems

Dim-to-warm GU10 LED spotlights typically use a dual-channel or multi-channel LED architecture, combined with intelligent driver control.

Working principle:

• A warm LED channel and a neutral/cool channel are integrated in one light engine
• During dimming, channel balance shifts dynamically
• The spectral output gradually moves toward warmer wavelengths

Advanced driver features may include:

• High-resolution current control (smooth dimming curve)
• PWM or hybrid dimming control
• Thermal compensation for stable chromaticity shift
• Deep dimming capability (down to 1% or lower in premium designs)

High-quality systems also ensure:

• Flicker-free performance (low Pst LM / IEEE 1789 aligned design)
• Stable chromaticity across the full dimming range
• Smooth, non-stepped visual transition

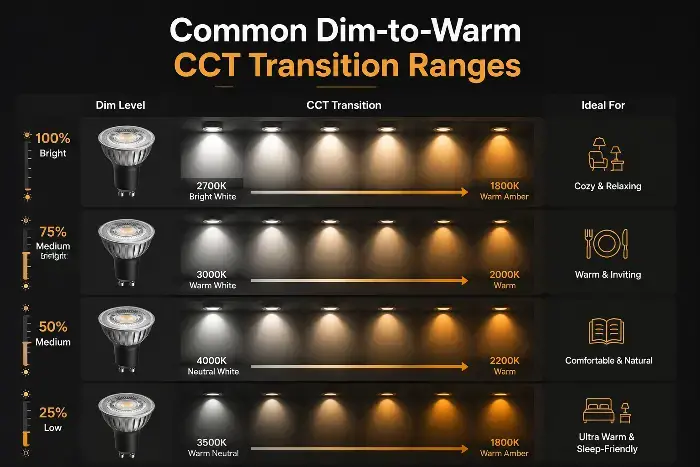

Common Dim-to-Warm CCT Transition Ranges

Dim-to-warm is not limited to a single color temperature range. Different applications use different transition profiles depending on design intent and lighting atmosphere requirements.

Key insight:

Dim-to-warm performance is defined more by its transition behavior and curve quality than by fixed endpoint values.

Por que é que a Atmosfera Importa no Design de Iluminação

In both hospitality and residential environments, lighting is a critical component of spatial perception.

Lighting influences:

• Emotional comfort
• Perceived material quality
• Spatial depth and contrast
• User behavior and dwell time

Well-designed ambient lighting helps transform a space from purely functional to emotionally engaging.

Why Dim-to-Warm Is Ideal for Hospitality Design

Hotels and hospitality environments rely heavily on lighting to shape guest experience across different time periods and usage scenarios.

Quartos de Hóspedes

• Smooth transition from functional lighting to relaxation mode
• Supports winding-down behavior without switching fixtures

Lobbies

• Creates warm first impressions
• Enhances perceived luxury and brand identity

Corridors

• Soft low-glare navigation lighting
• Improved visual comfort and reduced harsh contrast

Restaurants and Bars

• Adaptive mood lighting for different service phases
• Enhances food presentation and social atmosphere

Dim-to-warm systems reduce the need for multiple fixtures with different CCTs, simplifying architectural lighting design.

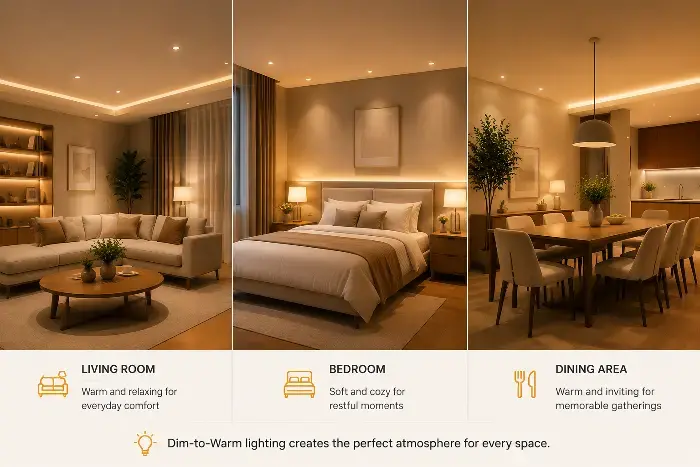

Why Dim-to-Warm Works in Residential Spaces

Residential lighting requires flexibility across different times of day and human activities.

Living Rooms

• Bright neutral warm light for daytime use
• Softer warm tones for evening relaxation

Quartos

• Ultra-warm low-intensity lighting for pre-sleep comfort
• Supports relaxation-oriented environments

Áreas de Jantar

• Adjustable ambiance for social or functional use
• Enhances material perception and food appearance

Dim-to-warm GU10 simplifies lighting control without requiring complex smart lighting infrastructure.

Why Metal GU10 Design Matters

Many professional dim-to-warm GU10 products use a metal cup optical and thermal structure, which provides both performance and reliability advantages.

1. Thermal Management

Efficient heat dissipation helps:

• Stabilize LED junction temperature
• Maintain consistent chromaticity over time
• Extend system lifespan and lumen maintenance performance

2. Optical Control

Metal reflector structures improve:

• Beam accuracy and directionality
• Reduction of stray light
• Higher contrast accent lighting performance

3. Visual Comfort and Glare Control

Well-designed optical systems contribute to:

• Softer beam cut-off
• Improved visual comfort in architectural spaces
• More premium “lighting without glare” perception

Dim-to-Warm vs Fixed CCT GU10

Dim-to-warm lighting consolidates multiple lighting scenes into a single luminaire, significantly improving design efficiency.

Applications of Dim-to-Warm GU10 Lighting

Hospitality Sector

• Hotel guest rooms
• Suites and premium rooms
• Lobbies and reception areas
• Restaurants and lounges

Residential Sector

• Living rooms
• Quartos
• Dining spaces

Commercial and Retail

• Boutique stores
• Jewelry lighting
• Luxury product displays

Entertainment Spaces

• Bars and lounges
• Mood-based environments
• Experience-driven venues

Engineering Insight: Why Quality Matters in Dim-to-Warm Systems

Not all dim-to-warm GU10 products deliver the same performance quality. High-performance systems require precise engineering in:

• Color rendering stability (CRI typically > 90, R9 optimized for premium environments)
• Smooth dimming curves without visible steps
• Flicker control (low flicker index / IEEE 1789-aligned design principles)
• Deep dimming capability (down to very low light levels)
• Controlled CCT shift linearity across dimming range

Low-quality implementations may result in:

• Color inconsistency at low brightness
• Noticeable flicker during dimming
• Abrupt or non-linear color transitions

Is Dim-to-Warm the Same as Human-Centric Lighting?

Dim-to-warm lighting is often associated with comfort-oriented lighting design, but it is not a full human-centric lighting system.

Human-Centric Lighting typically includes:

• Dynamic circadian tuning throughout the day
• Automated lighting control systems
• Biological rhythm optimization strategies

Dim-to-warm focuses on:

• Warm emotional transition during dimming
• Visual comfort and atmospheric control
• Evening relaxation and hospitality experience

Dim-to-warm can be part of a broader human-centric lighting strategy but does not replace it.

Frequently Asked Questions

What is dim-to-warm lighting?

Dim-to-warm lighting is an LED technology where color temperature becomes warmer as brightness is reduced, simulating incandescent-like behavior.

Is dim-to-warm limited to a specific color temperature range?

No. Different products use different transition ranges such as 3000K→2200K, 2700K→1800K, or other engineered curves depending on application requirements.

Where is dim-to-warm lighting commonly used?

Hotels, restaurants, residential interiors, and high-end commercial environments.

Is dim-to-warm compatible with TRIAC dimmers?

Many professional GU10 dim-to-warm products support TRIAC (phase-cut) dimming systems, depending on driver design.

Why choose dim-to-warm over fixed CCT lighting?

It enables dynamic emotional lighting control within a single fixture, reducing design complexity and improving spatial experience.

Conclusão

Dim-to-warm GU10 lighting represents a fundamental shift in architectural lighting design, moving from static illumination toward dynamic emotional control.

Rather than being defined by a single color temperature range, dim-to-warm technology is defined by its ability to create smooth, natural transitions in both brightness and color temperature simultaneously.

In hospitality environments, it enhances guest experience and spatial perception. In residential applications, it improves comfort and daily living quality. In commercial and architectural spaces, it enables more flexible and emotionally responsive lighting design.

As lighting continues to evolve toward experience-driven environments, dim-to-warm technology has become an essential tool for architects, designers, and lighting manufacturers.
